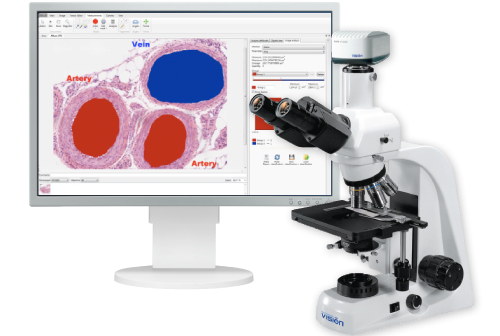

Vision Bio

Digital solution for analysis, report generation and management of digital albums in microscopy

The professional solution for digital sample analysis — calculation and classification of elements. Tools to create marks and comments directly on the microscopic image. Easy and convenient management of microscopic samples, analysis results and reports in a mutual digital environment.

Main benefits

1. Professional microscopic examination  and generation of superior quality digital samples
2. All the necessary tools for digital image enhancement
3. Reliable data management system stores all digital samples and analysis results
4. Analysis and classification of elements
5. Report generation according to individual requirements
6. Automated statistical processing
7. Easy access to analysis results and digital samples
8. Telemedicine and remote consultations with colleagues
9. Education for specialists: scientists, doctors, lab technicians and students

Workflow optimization

	Quick and easy patient registration Creating and managing patient records became much easier. All patient data are shown in a chart form and can individually be adjusted by selecting the necessary fields: ID, name, surname, date of birth, age, etc.
	Samples are conveniently organized in digital albums Digital album is a modern approach to create, edit, manage and classify digital samples. To each stored album you can add marks and comments.
	Professional tools to work with digital samples Find a required object on the microscopy sample in video mode, and capture its perfectly crisp digital image in one quick step.
	Report generation in accordance with modern requirements Ready-made templates allow specialists to create reports of the microscopic study without spending valuable time on routine paperwork. Saved reports are available for search, preview, edit, print, send by e-mail and export to popular formats: PDF, DOC, XLS, JPEG, GIF, PNG and many others.
	Secure and reliable date storage Vision database stores all patient records, microscopic samples, analysis results, and reports. Information is shown in a form of a patient record with his/her analysis result. Possibility to assess quickly the dynamics in analysis results over a period of time. The system saves all data automatically, excluding any possibility of loosing valuable information.
	Benefits of Internet connection Connect several workplaces to a remote server and hold video conferences with colleagues from around the world, exchange digital albums, analysis results and reports, publish your research on specialized social networks.

Camera control tools

Analysis procedure is easier than ever with report templates

	Camera settings Different modes when working with color (8 or 16 bit) allow color depth adjustment. “Field alignment” function removes any image defects: uneven field illumination, dust and scratches on optical components of the system.
	Color settings and exposure/brightness control Manual or automatic color settings give the possibility of image adjustment according to illumination (LED or halogen). If its necessary to change image brightness, adjust exposure.
	Histogram Histogram explores contrast, saturation and exposure of the image, as well as estimates what is required when capturing/enhancing an image.
	Preview Live image preview. “Zoom” function lets you magnify the sample. “Resolution” function sets the size of the captured image in pixels.

Image editing tools

Crop — select a fragment of an image and save it as a separate digital sample. Scale — reduce the image size for easier online operations. Rotate — to make examination easier, turn your microscopic image at a certain angle. Color — select a color from a preset palette, use the ‘Pipette’ tool to select it from the image directly or set precise RGB values with alpha blending (transparency). Color adjustment — to ensure the best quality of your digital image, use color adjustment tools such as brightness, contrast and saturation settings. Edit — you can easily remove minor defects if they hamper your work. Export/import — to exchange samples with your colleagues, it is easy to import and export images from your database.

Simplified analysis procedure

Preset methods of analysis
— volume fraction
— particle measurement
— count and classification
— phase analysis

Volume fraction
Calculate the ratio (%) of the volume fraction to the area of the selected image fragment.

Particle measurement
Measure linear and optical parameters of particles automatically or manually.

Count and classification
Manual or automatic object identification, their count and classification based on the criteria set by the user.

Phase analysis
Segmentation of objects in a histogram. Analysis of distribution in an image by color or one of the color channels (RGB).

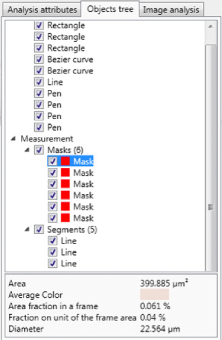

Object tree

All analysis elements are at hand Object tree is an organized list that contains all analyzed objects. Each element can be modified at any time directly on the digital sample or in the object tree.

Select an object in the object tree and the system will display all information regarding its measurement parameters.

If there is any information you don’t need at the moment, for example, marks and comments that interfere with your work, just deselect the checkbox, and they will be hidden. Select the checkbox to view your comments again.

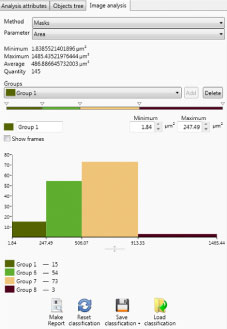

Classification and object analysis

Flexible and powerful classification adapted to required analysis tasks



Classify analyzed objects using required criteria to generate a report.

Select a required number of groups and define a measurement range for each one of them:
— size of selected objects
— location
— optical parameters
— quantity

The system will automatically measure and display the results visually in a histogram form.

You can save frequently used methods to make them easily accessible in the future. Methods can also be downloaded from a computer hard drive.

Example of analysis

Blood vessel analysis

	Capture an image of a microscopic sample.
	Select vessel lumens with the “magic wand” tool. Edit the selected area to remove unnecessary elements and correct the area to enhance analysis accuracy.
	Analyze the selected area. Analyzed objects are saved in the object tree.
	Classify objects into groups, selecting a range for each one.
	Generate and print out your analysis report.

Analysis procedure

	Prepare a microscopic sample and install it on the microscope stage. You will see a digital image in your album immediately.
	Proceed with examination by capturing required microscopic images and entering analysis results in the database. The system saves all data in real time, securing analysis reliability.
	Completed report can be printed out, sent by e-mail or exported to other applications in many different formats, such as PDF, DOC, XLS, JPEG, GIF, PNG, etc.

Microscopy report templates

With your Vision system, you get a set of standard microscopy report templates which is constantly expanding.

cytology analysis	histology analysis
myelogram analysis	urine analysis
stool analysis	parasitology analysis
gastric content analysis	duodenal content analysis
exudative effusion analysis	sputum analysis
cerebral spinal fluid analysis	vaginal discharge analysis
microbiology analysis	mycology analysis

Report example

1. Report name
2. Laboratory logo
3. Analysis information
4. Patient information
5. Date and time of sample collection/delivery/report
6. Institution information
7. Comments about a patient/sample, etc.
8. Analysis results
9. Images
10. Interpretation of results
11. Recommendation
12. Validation
13. Date and time of validation
14. Signature
15. Page number

Database

Reliable database

Vision database stores all patient records, microscopic samples, analysis results, and reports. Information is shown in a form of a patient record with his/her analysis result. Possibility to assess quickly the dynamics in analysis results over a period of time.

The system saves all data automatically, excluding any possibility of loosing valuable information. Advanced data management tools, like filtering and sorting, will help you not to spend time on searching.

Storage, statistic handling, quick search, cooperation with colleagues, remote access via Internet and integration into other information networks (LIS/HIS).

If you need a special report template or additional data fields to a patient record, we can help you customize the database according to your requirements.

Main characteristics

	Biological trinocular microscope with “infinitive” optics and Vision digital camera. Preview live video on a PC as well as capture a digital microscopic sample.
	Personal computer with Vision Sperm+ software, high resolution monitor and color printer.
	A professional set of tools to work with digital samples: create, edit, organize, classify and comment.
	Storage, statistic handling, quick search, cooperation with colleagues, remote access via Internet and integration into other information networks (LIS/HIS).
	Calculation of geometric parameters in standard measurement units due to simple calibration of the optical system.
	Calculation of optical and geometric parameters of a selected object. Tools to create marks and comments on the digital sample.
	Classification of analyzed objects according to a required criteria and report generation. Analysis results are displayed in the form of histograms, charts and tables.
	Sperm quality analysis report template. Customizable report reference guide to fit your personal requirements.
	Report contains: images, analysis parameter fields, measurement units and reference range.
	Report operations: search, preview, edit, print, e-mail and export in popular formats: PDF, DOC, XLS, JPEG, GIF, PNG and many more.
